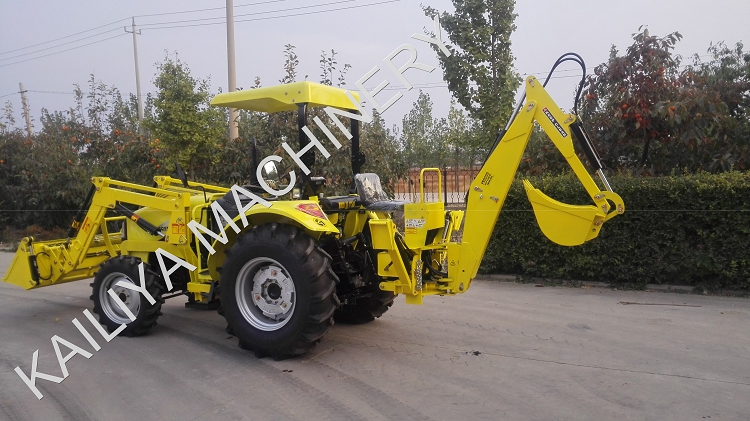

Backhoe,three point linkage
Detailed introduction:
Specifications LW Series Quick Attach Type 3 Point Hitch Backhoe
|
Model |
LW-6 |
LW-7 |
LW-8 |
|
Max.digging depth (mm/ inch ) |
1850/ 73 |
2150/ 85 |
2640/ 104.6 |
|
Max.digging depth flat bottom (mm/ inch ) |
1600/ 63 |
2000/ 79 |
2500/ 98 |
|
Max. digging height (mm/ inch ) |
2500/ 98 |
3400/ 134 |
3510/ 138 |
|
Loadover heith (mm/ inch ) |
1400/ 55 |
1760/ 69 |
2000/ 79 |
|
Max.digging radius (mm/ inch ) |
2800/ 110 |
3360/ 132 |
3930/ 155 |
|
Bucket rotation(angle) |
160 |
160 |
160 |
|
Swing Arc(angle) |
140 |
140 |
140 |
|
Shipping Weight(kg) |
500 |
580 |
650 |
|
Dimensions(L×W×H)mm |
2100×1600×1600 |
2200×1800×2100 |
2400×1800×2500 |
|
Power Requirement |
16-40hp |
40-60hp |
60-90hp |
· 3 Point fits most tractors with a Category 1 or 2 or 3 Hitch.
· Frame Mount Model Currently fits the 20-100hp series tractors .
· Options Reservoir Tank with Filter.
· PTO Pump and gear box.
Bucket size and Cap
|
Size(mm/ inch ) |
250/ 10 |
300/ 12 |
400/ 16 |
450/ 18 |
500/ 20 |
550/ 22 |
|
Cap.(mm) |
0.030 |
0.036 |
0.048 |
0.054 |
0.06 |
0.066 |
Package
|
Model |
(length X width X height) |
|
Two LW-6: |
2.2m X 1m X 1.1m |
|
Two LW-7: |
2.2m X 1m X 1.1m |
|
Two LW-8: |
2.2m X 1.1m X1.1m |
|
One LW-8: |
2.2m X 0.8m X1.1m |
|
One LW-7: |
2.2m X0.8m X 1.1m |
|
One LW-6: |
2.2m X0.7m X 1.1m |
Single package is also available for choice when customers only buy one unit each time.
|
LW 6 |
LW 7 |
LW 8 |
|
Boom cylinder: |
Boom cylinder: |
Boom cylinder: |
|
External diameter: 83mm |
External diameter: 83mm |
External diameter: 83mm |
|
Inside diameter: 63mm |
Inside diameter: 63mm |
Inside diameter: 63mm |
|
Length: 532mm |
Length: 615mm |
Length: 527mm |
|
Bucket cylinder: |
Bucket cylinder: |
Bucket cylinder: |
|
External diameter: 83mm |
External diameter: 83mm |
External diameter: 100mm |
|
Inside diameter: 63mm |
Inside diameter: 63mm |
Inside diameter: 80mm |
|
Diameter of piston: 25mm |
Diameter of piston: 35mm |
Diameter of piston: 45mm |
|
Length: 532mm |
Length: 615mm |
Length: 662m |
