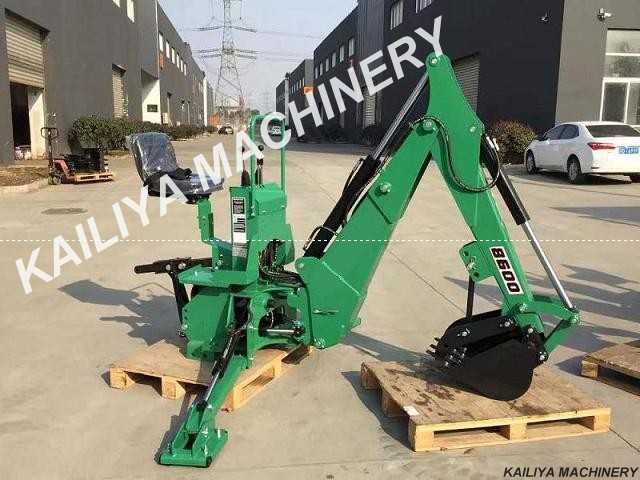

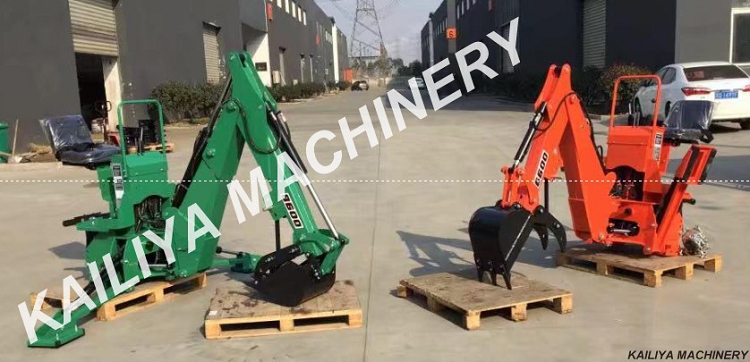

BH Backhoe
CATEGORY:Backhoe
Detailed introduction:
Main Specification:
|
Model
|
BH6600
|
BH7600
|
BH8600
|
|
Maximum Digging Depth
|
7'0"
|
8'0"
|
9’0”
|
|
A. Digging Depth (two foot flat bottom)
|
6'6"
|
7'6"
|
8’6”
|
|
B. Swing Arc
|
180 °
|
180 °
|
180
|
|
C. Loading Height (bucket at 60 ° )
|
5'0"
|
5'10"
|
5’20”
|
|
D. Reach from Center Line of Swing Pivot
|
8'6"
|
9'6"
|
10’6”
|
|
E. Transport Height (maximum)
|
4'11"
|
5'9"
|
6’8”
|
|
F. Bucket Rotation
|
180 °
|
180 °
|
180
|
|
G. Loading Reach (bucket at 60 ° )
|
3'2"
|
3'7"
|
4’0”
|
|
H. Transport Overhang
|
3'5"
|
3'6"
|
3’7”
|
|
I. Undercut
|
2'4"
|
2'6"
|
2’8”
|
|
J. Stabilizer Spread, down position
|
6'6"
|
7'5"
|
8’5”
|
|
K. Stabilizer Spread, up position
|
3'11"
|
5'1"
|
6’0”
|
|
Bucket Cylinder Digging Force
|
2450 lbs
|
2840 lbs
|
3000lbs
|
|
Dipper stick Cylinder Digging Force
|
1250 lbs
|
2005 lbs
|
2500lbs
|
|
Shipping Weight (less bucket)
|
654 lbs
|
875 lbs
|
1100bls
|
|
Hydraulic Volume Requirements
|
3 to 4 GPM
|
4 to 5 GPM
|
5 to 6 GPM
|
|
Hydraulic Pressure Requirements
|
2000 psi
|
2000 psi
|
2000 psi
|
|
Recommended Tractor HP Requirements
|
18 - 35 HP
|
25 - 45 HP
|
35 - 65 HP
|
|
Specifications May Very Depending on Tractor Model and Subject to Change Without Notification.
Tractor Must Be Equipped with ROPS and Seat belt That will Provide Better Safety. |
|||
