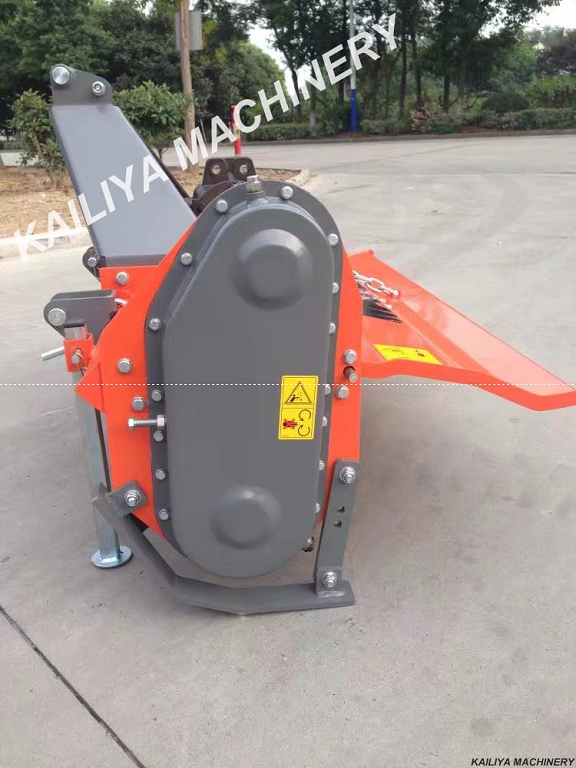

Heavy series rotary cultivator
Detailed introduction:
|
Model |
TH-90 |
TH-100 |
TH-105 |
TH-125 |
|
Dimensions(L×W×H) |
1100×800×700mm |
1200×800×700mm |
1250×800×700mm |
1450×800×700mm |
|
Structure Weight |
250kg |
260kg |
265kg |
285kg |
|
Tilling Width |
895mm |
995mm |
1045mm |
1245mm |
|
Tilling Depth |
120mm |
120mm |
120mm |
120mm |
|
Working Efficiency |
1500-2500m²/h |
1700-2600 m²/h |
1800-2600 m²/h |
2000-2900 m²/h |
|
PTO Turnning Speed |
540r/min |
540r/min |
540r/min |
540r/min |
|
PTO Spline |
6×8×700mm |
6×8×700mm |
6×8×700mm |
6×8×700mm |
|
Power Requirement |
16-20hp |
18-22hp |
20-28hp |
25-30hp |
|
Model |
TL-135 |
TH-150 |
TH-180 |
TH-200 |
|
Dimensions(L×W×H) |
1550×800×700mm |
1700×800×700mm |
2000×800×700mm |
2200×800×700mm |
|
Structure Weight |
300kg |
320kg |
350kg |
380kg |
|
Tilling Width |
1345mm |
1495mm |
1795mm |
1995mm |
|
Tilling Depth |
120mm |
120mm |
120mm |
120mm |
|
Working Efficiency |
2000-3000m²/h |
2200-3000 m²/h |
2200-3200 m²/h |
2200-3200 m²/h |
|
PTO Turnning Speed |
540r/min |
540r/min |
540r/min |
540r/min |
|
PTO Spline |
6×8×700mm |
6×8×700mm |
6×8×700mm |
|
|
Power Requirement |
25-30hp |
30-50hp |
40-75hp |
75-100hp |
